Standard Panel

Noise Walls

Recycled Plastic Noise Walls

Engineered for large-scale government infrastructure projects and are now available for commercial use.

Made from up to 80% post-consumer recycled content, Pact Noise Walls have been used in government backed infrastructure projects such as Australia’s Greenest Freeway in Mordialloc, Victoria. The panels incorporate up to 80% post-consumer materials made from a blend of hard to recycled soft plastics like stretch wrap and recycled “milk bottle grade” high-density polyethylene (HDPE) to provide a second life for single use plastics that were destined for landfill. Pact Noise walls are 100% recyclable at end of life, enabling a true Circular Economy.

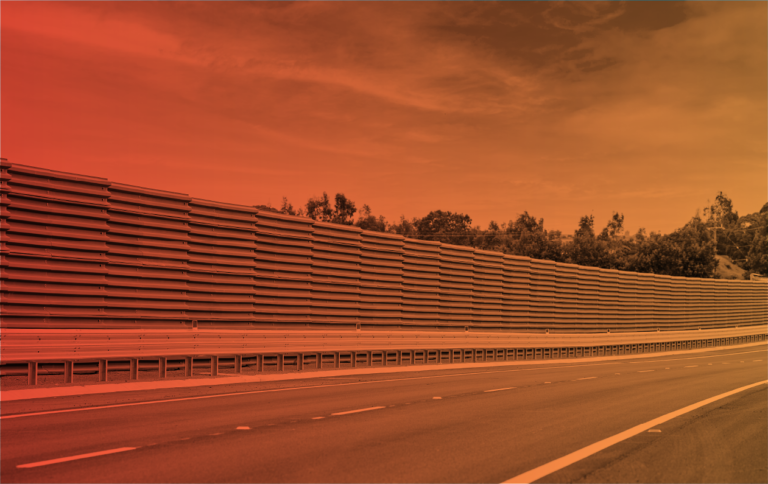

Pact-Noise-Wall-Mordialloc-Freeway















A Range To
Suit Your Needs

Our standard panel comes in three variants;
Ferro, Lapis, & Silvis.

Each design has been developed to integrate withing your landscape, and compliment the surrounding environments and substrates. Our panels have been designed to not only create a unique look, but also seamlessly replace existing substrates such as timber noise walls.

The Ferro

An industrial design which mimics the amplified angles of corrugate steel for a structural look.
  • Also offering other product possibilities
  • Used in Australia’s greenest freeway(Mordialloc Bypass, Victoria)
  • Heavier than other models.
  • Designed for 6m post mounting spacings
    (2 panels, serrated layout).

Specifications
Height: 1000 mm
Length: 3000 mm
Thickness: 142 mm
Weight p/sqm: 23.3 kg

The Lapis

The front design features a stone brick look designed to complement heritage structures.
  • Fast side vs slow side. A more subtle design facing properties
  • Can accept extra inserts or moulds with logos or branding

Specifications
Height: 1000 mm
Length: 3000 mm
Thickness: 142 mm
Weight p/sqm: 15 kg

The Silvis

A narrow noise wall panel designed to replace existing timber planks.
  • Subtle replacement to blend in with surrounds of timber planks
  • Can be customised with additional inserts for logo’s etc.

Specifications
Height: 1000 mm
Length: 2400 mm
Thickness: 75 mm
Weight p/sqm: 15 kg

Rotationally Moulded
Plastic (RMP) Noise Walls

Our noise walls are made from hard to recycle plastics including both post-consumer and pre-consumer waste streams.

Our patented Rotationally Moulded Panels (RMP) used for noise abatement and cladding facades are comprised of up to 80% recycled content and are designed to meet and endure the Australian climate. They can be customised to be aesthetically relevant for each community in which they are placed and are comparably lower cost with a smaller environmental footprint when compared with conventional concrete products.

Benefits of RMP Noise Walls

Rotationally Moulded Plastic (RMP) Noise Walls provide significant benefits over traditional materials.
Lower carbon footprint than concrete
Longer life than timber
100% Recyclable
Easy removal of graffiti
Easy to repair if damaged
Excellent resistance to weathering

Colour & Customisation Flexibility

Enhance the aesthetics of your project with a broad colour selection and ability to customise your noise wall.

Our Standard Panel Noisewalls are available in 10 colours to match the aesthetic of your installation. To further customise your noisewall, we have the capability to add custom plates to insert your company name, branding or logo’s.

Colours Available with up to 80% Post-Consumer Recycled Content

  • Terrain Red
  • Armor Grey
  • Basalt
  • Monument

Colours Available with up to 30% Post-Consumer Recycled Content

  • Rivergum
  • Merino
  • Caulfield
  • Mountain Blue
  • Wheat
  • Jasper
